GSM INTERNAL ANTENNAS
Return to Previous Page
Show
Per page
1 in stock

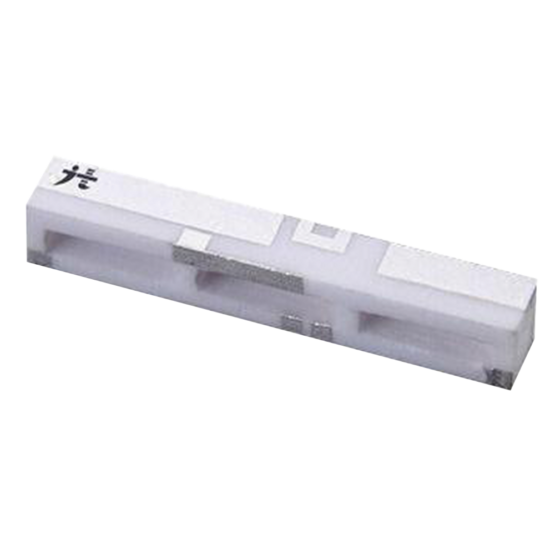

A10340H
- Dimensions: 27.0 x 8.0 x 3.2 mm
- Frequency: 824 – 960MHz, 1710 – 2170 MHz
- Polarization: Linear
- Antenna type: SMD
- Dimensions: 36.4 x 6.4 x 3.2mm
- Frequency: GSM850, (E) GSM900, GSM1800 (DCS) GSM 1900 (PCS)
- Efficiencies: 824 - 960MHz 60% / 1710 - 217MHz 50%
DATASHEET
1 in stock
ANTARES:
- Flexible PCB Antenna using 3M 468 adhesive
- Dimensions: 100 x 20 x 0.2 (mm)
- Cable: 180mm length, 1.13mm diameter
- Frequency: 824 - 960MHz, 1710 -1990MHz, 2110-2170MHz
- Dimensions: 30.0 x 28.5 x 0.15mm
- Efficiency: 45% at 824 - 960MHz, 55% at 1710 -1990MHz, 60% at 2110-2170MHz
DATASHEET
- Frequencies: 824 - 960 MHz, 1710 - 1990 MHz, 2110 - 2170 MHz
- Dimensions: 71.0 x 12.5 x 0.15mm
- Efficiency: 45% at 824-960MHz, 70% at 1710-1990MHz, 65% at 2110-2170MHz
DATASHEET
- Frequencies: GSM850/900/1800/1900 MHz
- Efficiency at Frequencies: 824-960 MHz Efficiency: (L) 62% / (R) 64% 1710-1990 MHz Efficiency: (L) 73% / (R) 64%
- Dimensions: 26.1 x 26.1 x 10.15mm
DATASHEET
Out of stock
IC-AMPS-GSM:
DATASHEET
- Frequency Range: 824-894/890-960/1710-1990 Mhz
- Band Width: 70/180 mhz
- Gain: 1 dbi
- Radiation: Omni
- Connection type: UFL
DATASHEET
- GSM QUAD BAND ANTENNA
- FREQUENCIES: 850/900/1800/1900 MHZ
- GAIN: 1DBI
- SIZE: 35.8 X 7 X 0.5 MM
- COAXIAL LENGTH CAN BE SPECIFIED
- Pentaband Cellular Antenna
- Frequencies: 824-960/1700-2170 MHz
- Peak Gain:
- Size: 35 X 5 X 6 MM
- Compattible to Taoglas PA25
Datasheet
- Frequency: 698-798MHZ, 824-960MHz, 1710-2170MHz, 2300-2400MHz, 2500-2690MHz
- Dimension: 110.0 x 20.0 x 0.15 mm
- Efficiencies: 55% at 698-798MHZ, 65% at 824-960MHz, 65% at 1710-2170MHz, 55% at 2300-2400MHz, 70% at 2500-2690MHz
DATASHEET
- Frequencies: 689-798MHz, 824-960MHz, 1710-2170MHz, 2300-2400MHz, 2500-2690MHz
- Dimensions: 110.0 x 20.0 x 0.15 mm
- Efficiency: 60% at 689-798MHz, 60% at 824-960MHz, 65% at 1710-2170MHz, 80% at 2300-2400MHz, 80% at 2500-2690MHz
DATASHEET
1 in stock
OPALA:
- Designed to work in compact devices with limited space
- Resistant to de-tuning
- For 4G LTE Applications, but also backward compatible for 3G/2G systems
- Less dependency on GND plane length
- SMD component supplied in Tape and reel
- Higher performance than larger OTS solutions
- Simple design in process
- Project life support Direct from Synzen Engineers
- Suitable for sealing with resin / potting compounds
- Frequencies: GSM850/900/1800/1900/WCDMA
- Efficiency at Frequencies: 824-960 MHz Efficiency: 70% 1710-2170 MHz Efficiency: 60%
- Dimensions: 40 x 10 x 3.2mm
DATASHEET
- Frequencies: GSM850/900/1800/1900/WCDMA
- Efficiencies: 824-960 MHz - 75%; 1710-2170 MHz - 65%
- Dimensions: 40 x 10.4 x 3.2mm
DATASHEET
1 in stock
SR4C005
- Frequency: 824 - 960MHz, 1710 - 1990MHz, 2110 - 2170MHz, 2300 - 2400MHz, 2500 - 2690MHz
- Dimensions: 40.0 x 10.0 x 1.6 mm
- Efficiency: 45% at 824 - 960MHz, 60% at 1710 - 1990MHz, 55% at 2110 - 2170MHz, 60% at 2300 - 2400MHz, 65% at 2500 - 2690MHz
1 in stock
SR4L033-L/R
- Frequency: 791 - 960 MHz
- Efficiency: 60% at 791-862 MHz, 65% at 824-960 MHz
- Dimensions: 20.0 x 11.0 x 1.6 mm
1 in stock
SR4L034-L/R
- Frequency: 698-798MHz, 824-960MHz, 1710-2170MHz, 2300-2400MHz, 2500-2690MHz
- Dimensions: 28.0 x 8.0 x 3.3 mm
- Efficiency: 55% at 698-798MHz, 70% at 824-960MHz, 60% at 1710-2170, 60% at 2300-2400MHz, 55% at 2500-2690MHz
Showing 1–20 of 22 results
